Inground Scissor ECOLIFT

ECOLIFT is the industry’s original ultra-shallow, full-rise axle-engaging inground scissor lift.

Available in a 2, 3 or 4 scissor configuration, with a total lifting capacity of 60,000 lbs., 90,000 lbs., and 120,000 lbs. respectively – at 30,000 lbs. per scissor.

Check out the full line of Stertil-Koni heavy duty hydraulic vehicle lifts!

ECOLIFT Brochure
  • Wheels-free lifting with superior ease-of-use and performance
  • Ultra-shallow pit design, only 34”
  • Ideal for retrofit installations and new workshops
  • Full rise 70” lifting height for maximum convenience and usability
  • Electronically synchronized for ultimate safety
  • Free-standing console provides easy access for quick service and maintenance
  • Continuous recess for maximum flexibility

Specifications

ModelECO 60ECO 90ECO 120
Lifting Capacity 60,000 lbs.90,000 lbs.120,000 lbs.
Lifting Height70 inches70 inches70 inches
Pit Depth34 inches34 inches34 inches
Travel Range10, 13, 17 feet10, 13, 17 feet10, 13, 17 feet
Minimum Wheelbase48 inches48 inches48 inches
Lifting Time90 seconds90 seconds90 seconds
Compressed Air90 PSI at 5CFM90 PSI at 5CFM90 PSI at 5CFM
Electrical208-230/460/575208-230/460/575208-230/460/575
Motor Power2 x 5 hp3 x 5 hp4 x 5 hp
BrochureBrochureBrochure
Lifting Capacity 60,000 lbs.Lifting Height70 inchesPit Depth34 inchesTravel Range10, 13, 17 feetMinimum Wheelbase48 inchesLifting Time90 secondsCompressed Air90 PSI at 5CFMElectrical208-230/460/575Motor Power2 x 5 hpBrochure
Lifting Capacity 90,000 lbs.Lifting Height70 inchesPit Depth34 inchesTravel Range10, 13, 17 feetMinimum Wheelbase48 inchesLifting Time90 secondsCompressed Air90 PSI at 5CFMElectrical208-230/460/575Motor Power3 x 5 hpBrochure
Lifting Capacity 120,000 lbs.Lifting Height70 inchesPit Depth34 inchesTravel Range10, 13, 17 feetMinimum Wheelbase48 inchesLifting Time90 secondsCompressed Air90 PSI at 5CFMElectrical208-230/460/575Motor Power4 x 5 hpBrochure

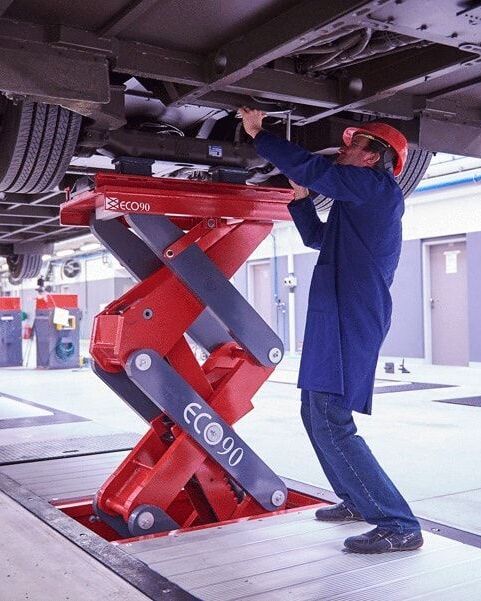

Wheels-free Maintenance

The Stertil-Koni inground scissor ECOLIFT keeps the vehicle's wheels fully accessible, making it ideal for brake jobs and suspension work among other service jobs benefitting from a wheels-free lifting approach.





Stertil-Koni Heavy Duty Inground Scissor Lift

ebright Smart Control System

The revolutionary ebright Smart Control System combines intuitive ease of use with maximum visual information about the lifting process, making lifting safer, smarter, and more efficient than ever before.

Ultra-Shallow Construction

The ECOLIFT's shallow-pit construction has a depth of just half of the lighting height. With an installation depth of 34", the ECOLIFT is ideal in installations with high water tables, unstable soil, or thick bedrock foundations.

Easy Installation

Not only is the installation depth extremely low, the ECOLIFT arrives on site pre-assembled and tested. The ECOLIFT is a drop-in/bolt-in design, which makes installation a breeze. Additionally, the ECOLIFT is the only relocatable inground lifting system in the world.

ECO 60

The ECO 60 is a 2 scissor lifting unit with a capacity of 60,000 lbs. The available ranges of horizontal travel for the ECOLIFT moveable lifting units are 10 feet, 13 feet, and 17 feet. This allows service of vehicles from articulated buses to multi-axle trucks.

ECO 90

The ECO 90 is a 3 scissor lifting unit with a capacity of 90,000 lbs. Two of the three scissors are movable, making this lift adaptable to even the longest heavy duty vehicles.

ECO 120

The ECO 120 is the largest and most versatile ECOLIFT, supplied in 4-scissor configuration. Three of the scissors are movable, making this lift excellent for extremely long vehicles such as articulated buses.

Models

  • ECO 60
  • ECO 90
  • ECO 120

Why Choose ECOLIFT?

Stertil-Koni Heavy Duty Bus Lift Scissor Lift

Space-Saving Continuous Recess

Utilizing the Continuous Recess® system, the ECOLIFT is designed to accommodate vehicle with extremely low ground clearance. The lifting mechanism can recess below floor level anywhere within the range of travel, restricting the possibility of undercarriage or lift damage caused by striking the lift during vehicle placement.

The pit covers are made from anodized aluminum and are equipped with a skid-resistant surface. The covers are capable of handling a wheel load of over 13,000 lbs and a point load of 7,000 lbs on a 2" square contact area, as would occur, for example, under a support stand leg.

ECOLIFT Operations

Heavy Duty Inground Scissor Lift

Innovative Design

The covers are driven hydraulically with an inverted rack and pinion system, sliding on a corrosion-resistant, self-cleaning surface. An industry proven control system, with electronic synchronization utilizing realtime feedback, ensure safe and smooth operation.

As standard, the control system includes a provision to restrict maximum height, helping avoid costly collisions between vehicle and workspace ceiling.
