Inground Telescopic Piston Lift

Stertil-Koni's inground telescopic piston DIAMONDLIFT set a new industry standard for inground lifts. The state-of-the-art DIAMONDLIFT gives you a choice in a variety of workshop situations.

Whether you are building a new workshop; want to renovate or have difficult building conditions, there is a Stertil-Koni inground DIAMONDLIFT which can be configured specifically for your circumstances.

DIAMONDLIFT is available in two, three and four-piston configurations with lifting capacities of up to 35,000 lbs. per piston -- thus 64,000 lbs.- 70,000 lbs. (two pistons) and 96,000 lbs. - 105,000 lbs. (three pistons) and 105,000 lbs. - 140,000 lbs. (four pistons) respectively.

DIAMONDLIFT now comes with the optional Continuous Recess® movable lifting system. The Continuous Recess version with a broad base frame or cassette is recommended for vehicles with low ground clearance, for example, city transit and articulated buses preventing damage to the undercarriage of the vehicle. The movable pistons can recess below floor level anywhere within the travel range.

Check out the full line of Stertil-Koni heavy duty hydraulic vehicle lifts!



  • Capacity up to 35,000 lbs. per piston
  • Electronically synchronized for maximum safety and convenience
  • Hard-chrome plated piston rods for maximum protection against corrosion, wear and debris
  • Mechanical locking system utilizes a hardened, nitro carburized locking rod for maximum protection
  • ebright Smart Control System - Advanced Touchscreen Technology Offers Fingertip Control
  • All power units and control components are located above floor level
  • Low oil volume – only 4.5 gallons of hydraulic fluid required per piston
  • Aluminum trench covers with 13,600 lbs. drive over load
  • ALI Gold Certification Label
  • Continuous Recess movable lifting system

Specifications

ModelDIAMONDLIFT 64/2-PistonDIAMONDLIFT 70/2-PistonDIAMONDLIFT 96/3-PistonDIAMONDLIFT 105/3-PistonDIAMONDLIFT 128/4-PistonDIAMONDLIFT 140/4 piston
Lifting Capacity64,000 lbs.70,000 lbs.96,000 lbs.105,000 lbs.128,000 lbs.140,000 lbs.
Lifting height73 inches73 inches73 inches73 inches73 inches73 inches
Pit depth72 inches72 inches72 inches72 inches72 inches72 inches
Travel range10, 13, 17 feet10, 13, 17 feet10, 13, 17 feet10, 13, 17 feet10, 13, 17 feet10, 13, 17 feet
Minimum wheel base72 inches72 inches72 inches72 inches72 inches72 inches
Lifting Time90 seconds90 seconds90 seconds90 seconds90 seconds90 seconds
Compressed Air 90 PSI at 5CFM90 PSI at 5CFM90 PSI at 5CFM90 PSI at 5CFM90 PSI at 5CFM90 PSI at 5CFM
Electrical208-230/460/575208-230/460/575208-230/460/575208-230/460/575208-230/460/575208-230/460/575
Motor power2 x 5 hp2 x 5 hp3 x 5 hp3 x 5 hp4 x 5 hp4 x 5 hp
BrochureBrochureBrochureBrochureBrochureBrochure
Lifting Capacity64,000 lbs.Lifting height73 inchesPit depth72 inchesTravel range10, 13, 17 feetMinimum wheel base72 inchesLifting Time90 secondsCompressed Air 90 PSI at 5CFMElectrical208-230/460/575Motor power2 x 5 hpBrochure
Lifting Capacity70,000 lbs.Lifting height73 inchesPit depth72 inchesTravel range10, 13, 17 feetMinimum wheel base72 inchesLifting Time90 secondsCompressed Air 90 PSI at 5CFMElectrical 208-230/460/575Motor power2 x 5 hpBrochure
Lifting Capacity96,000 lbs.Lifting height73 inchesPit depth72 inchesTravel range10, 13, 17 feetMinimum wheel base72 inchesLifting Time90 secondsCompressed Air90 PSI at 5CFMElectrical 208-230/460/575Motor power3 x 5 hpBrochure
Lifting Capacity105,000 lbs.Lifting height73 inchesPit depth72 inchesTravel range10, 13, 17 feetMinimum wheel base72 inchesLifting time90 secondsCompressed air 90 PSI at 5CFMElectrical 208-230/460/575Motor power3 x 5 hpBrochure
Lifting Capacity128,000 lbs.Lifting height73 inchesPit depth72 inchesTravel range10, 13, 17 feetMinimum wheel base72 inchesLifting time90 secondsCompressed air 90 PSI at 5CFMElectrical 208-230/460/575Motor power4 x 5 hpBrochure
Lifting Capacity140,000 lbs.Lifting height73 inchesPit depth72 inchesTravel range10, 13, 17 feetMinimum wheel base72 inchesLifting time90 secondsCompresed air90 PSI at 5CFMElectrical208-230/460/575Motor power4 x 5 hpBrochure

Highest Level of Safety

The Stertil-Koni In-Ground DIAMONDLIFT is safe, user-friendly, reliable and environmental in-ground piston lift on the market today. Like real diamonds, the Stertil-Koni DIAMONDLIFTis virtually indestructible.

With the highest level of safety and accredited third-party testing and validation by ALI/ETL-Intertek resulting in a superior innovative lifting solution.

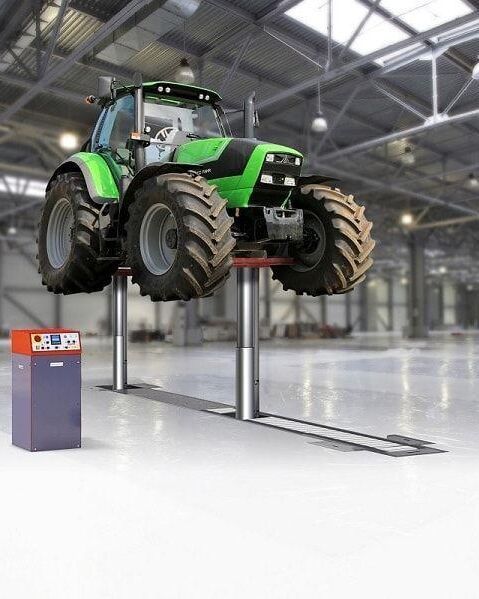

Stertil-Koni Heavy Duty Inground Lift DIAMONDLIFT Tractor Lift

For every need a solution

The DIAMONDLIFT is Stertil-Koni's state-of-the-art high-pressure telescopic piston lift. Optimum flexibility, productivity, durability and safe for the environment. The DIAMONDLIFT is available in a variety of configurations with 2, 3 or 4 piston configurations and two installation models: The DIAMONDLIFT Cassette and the DIAMONDLIFT Frame.

DIAMONDLIFT VIDEODIAMONDLIFT FRAME VERSION VIDEO



Both models are available in either a two, three or four piston configuration, with 32,000 lbs. or 35,000 lbs. per piston (depending on model), or a total of 140,000 lbs. in the four-piston configuration respectively. The lifting capacity of 30,000 lbs. per piston, makes the DIAMONDLIFT extremely versatile.

Cassette

This version is engineered with a pre-fabricated, seamless steel cassette that is fully contained thanks to its unique DiamondGuard protection – eliminating any concerns about electrolysis, corrosion and workshop fluids.  Travel ranges available from 10 ft., 13 ft. and 17 ft.

Frame

Specifically engineered for concrete foundations, the DIAMOND “frame” is ALI certified, available in a two- or three-piston configuration, and ideal for replacement situations.  It can be installed in existing pits, often delivering substantial time and cost benefits.

Versions

  • Cassette
  • Frame

Easy to use and maintain

The revolutionary ebright Smart Control System combines intuitive ease of use with maximum visual information about the lifting process.

ebright smart control system logo

Locking Systems

The gravity engaged locking system enables easy service and can be accessed from floor level. All control components and power units are located in the above-ground console to allow easy access for convenient maintenance.

Automatic Wheel Base Positioning

  • The optional Automatic Wheel Base Positioning (AWBP) system for the movable lifting unit, allows for pre-set programming of an endless number of vehicles which can be saved and activated.
  • Easy access for manual lowering (e.g. if there is a power outage)
  • Moveable piston assembly and the cover system is horizontally positioned utilizing an inverted rack and pinion design hydraulically-driven

Highly Durable Pistons

  • Hard chrome-plated piston construction very durable with long lifespan
  • By design, all critical seals are inside the telescopic cylinder, therefore protecting them from any potential damage caused by dirt or debris
  • High load bearing hard-chrome piston rods with corrosion protection
  • All of the bolts are anti-corrosion coated and bonded and sealed with a protection layer



Standard or Continuous Recess®

There is a choice between a Standard or a Continuous Recess® version. The Standard DIAMONDLIFT has 1 or 2 pockets. Ideal for vehicles with less extensive undercarriages.

Continuous Recess Logo

The Continuous Recess version with a broad base frame or cassette is recommended for vehicles with low ground clearance, for example, city transit and articulated buses preventing damage to the undercarriage of the vehicle. The movable pistons can recess below floor level anywhere within the travel range.

Sliders, Not rollers

Instead of utilizing traditional rollers which may cause a high point load, the DIAMONDLIFT moveable lifting unit(s) with the aluminum trench-covering system travel on UHMW (Ultra High Molecular Weight) polyethylene slides atop a stainless steel guide which is extremely tough and durable thus maintenance-free.

Superior and Environment-Friendly

  • The top part of the DIAMONDLIFT is completely hot-galvanized
  • DiamondGuard®, a high-quality coating, protects the cassettes from electrolysis and corrosion as well as hazardous workshop fluids and prevents soil contamination
  • DIAMONDLIFT high-pressure hydraulics only require 18 liters of biodegradable oil per piston
  • All hydraulics components are above the ground so in the event of leakage, there is no contamination to the ground

Maximum Innovative Industry Safety

The Stertil-Koni DIAMONDLIFT is the safest in-ground piston lift available for workshops. The standard gravity engaged locking has increments of 3 inches with 21 locking positions starting from 8 inches at floor level, which makes the inground lift ideal for tire workshops.

The locking system can be used as a parking system. When you lower the lift in the locks it fully carries the vehicle, the pistons are free of pressure and therefore no risk of unexpected lowering.

Additional safety features:

  • Ultrasonic sensors provide real-time synchronization
  • Integrated cover systems
  • Programmable lifting height
  • No high-power electric components in the pit
  • Audio and visual safety features
  • Optional detachable wired remote control
