FREEDOMLIFT FOR WHEELS-FREE MAINTENANCE JOBS

2-Post Lifts

FREEDOMLIFT combines peak performance and safety through a symmetrical, open floor design that optimizes workspace in the shop. Engineered to lift a broad range of light-to-medium-duty vehicles with capacities ranging from 16,000 lbs. to 30,000 lbs.

Freedom Lift Brochure
  • Flexible and efficient
  • Optimal workshop space
  • Single and double telescopic arms
  • Extended Flex Arms (EFA) offers maximum flexibility
  • ANSI/ALI-ALCTV / CSA Certified

Features

Specifications

ModelSK 2.16EFA*SK 2.16SK 2.20SK 2.26SK 2.30
Lifting capacity16,000 lbs.16,000 lbs.20,000 lbs.26,000 lbs.30,000 lbs.
Lifting height80.780.677.9 - 78.577.9 - 78.577.9 - 78.5
Pick-up height5.95.85.1 - 5.75.1 - 5.75.1 - 5.7
Min. single telescopic arm lengthn/an/a38.238.238.2
Max. single telescopic arm lengthn/an/a63.463.463.4
Min. double telescopic arm length19.535.435.435.435.4
Max. double telescopic arm length56.377.276.476.476.4
Lifting time58 sec58 sec58 sec95 sec95 sec
Power output5 hp5 hp5 hp5 hp5 hp
* Flexible dimensions
BrochureBrochureBrochureBrochureBrochure
Lifting capacity16,000 lbs.Lifting height80.7Pick-up height5.9Min. single telescopic arm lengthn/aMax. single telescopic arm lengthn/aMin. double telescopic arm length19.5Max. double telescopic arm length56.3Lifting time58 secPower output5 hp* Flexible dimensionsBrochure
Lifting capacity16,000 lbs.Lifting height80.6Pick-up height5.8Min. single telescopic arm lengthn/aMax. single telescopic arm lengthn/aMin. double telescopic arm length35.4Max. double telescopic arm length77.2Lifting time58 secPower output5 hpBrochure
Lifting capacity20,000 lbs.Lifting height77.9 - 78.5Pick-up height5.1 - 5.7Min. single telescopic arm length38.2Max. single telescopic arm length63.4Min. double telescopic arm length35.4Max. double telescopic arm length76.4Lifting time58 secPower output5 hpBrochure
Lifting capacity26,000 lbs.Lifting height77.9 - 78.5Pick-up height5.1 - 5.7Min. single telescopic arm length38.2Max. single telescopic arm length63.4Min. double telescopic arm length35.4Max. double telescopic arm length76.4Lifting time95 secPower output5 hpBrochure
Lifting capacity30,000 lbs.Lifting height77.9 - 78.5Pick-up height5.1 - 5.7Min. single telescopic arm length38.2Max. single telescopic arm length63.4Min. double telescopic arm length35.4Max. double telescopic arm length76.4Lifting time95 secPower output5 hpBrochure

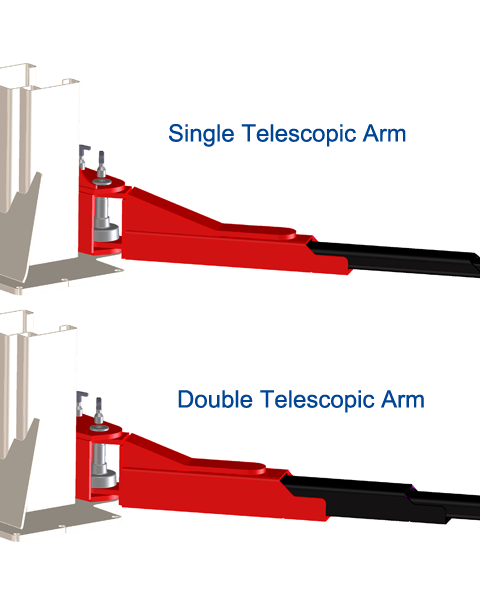

Single and Double Telescopic Arms

The FREEDOMLIFT is available with single and double telescopic lifting arms or a combination of both. Different arm configurations can be chosen for various widths between the columns. The FREEDOMLIFT is constructed with integrated sliding plates in the arms to assure easy adjustment of the arms.
